Usage

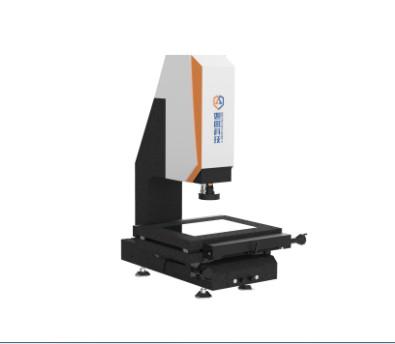

SPC series 2-D measuring machine is suitable for all application fields with the purpose of 2-D coordinate measurement. It is widely used in precision machinery, electronics, instrumentation, plastics, mobile phone tablet, hardware mold, PCB, LCD, LED display and other industries. 3D touch probe is available.
Features
■ High-precision marble base, table and column to ensure high stability and rigidity
■ Marble table design, with precision V-shaped cross rail, ensure long-term use without deform, effectively guarantee high mechanical precision
■ Z-axis with Panasonic servo motor for auto-focus
■ High-quality optical system and high-resolution CCD ensure sharp image edges
■ Three-ring and eight-zone LED ring surface cold light source and contour light source, avoid the deformation of precision parts caused by the heat from light
■ Optional fully automatic zoom lens, no need re-calibrate when changing magnification, save calibration time and avoid human error
■ Renishaw probe MCP/TP6 is available for height, depth and other 3D measurement
■ LeaderView image measuring software, powerful and easy to operate
Technical data
| Model | SPC300 | SPC400 |
| X,Y axis travel(mm) | 300*200 | 400*300 |
| Stage glass size(mm) | 357*257 | 457*357 |
| Z axis travel(mm) | 200 |
| X,Y,Z axis resolution | 1μm or 0.5μm |
| Measuring unit | glass scale |
| Measuring accuracy (μm) | 2.5+L/200 L=measuring length (unit: mm) |
| Operation mode (X,Y) | Manual |
| Operation mode (Z) | CNC |
| Camera | High resolution 1/3 inch color CCD camera |
| Detent zoom lens | 0.7X~4.5X |
| Video magnification | 27X~190X |
| Object of view | 10.6mm~1.6mm |
| Working distance | 90mm |
| Measuring software | 2D LeaderView measuring software |
| Illumination | Transmitted | Programmable LED ring light |
| Contour | Programmable LED light |
| Power supply | AC100~240V 50/60Hz |
